Product Name
Plates and Sheets
SKU
PTRIPL
Tetraflon® offers a large line of virgin PTFE sheets and plates, They are considered sheets when their thickness is small, giving the quality of flexibility to the product. On the other hand, it is called a plate when its thickness is greater. Due to the nature of Teflon, it resists high temperatures and is anticorrosive. The existing measurements for sheets and plates are: 1/64", 1/32", 1/16", 3/32", 1/8", 3/16", 1/4", 3/16 ", 1/4", 5/16", 3/8", 1/2", 5/8", 3/4", 1", 1 1/4", 1 1/2", 1 3/ 4", 2 1/4", 2 1/2", 2 3/4", 3".
Virgin PTFE sheets and plates. Due to the nature of Teflon, it resists high temperatures and is anticorrosive.
| Name | Features | Description | Application/Industry |
|---|---|---|---|
| VIRGIN PTFE PLATES AND SHEETS | RIGID FLAT-SHAPED PIECE MADE OF VIRGIN PTFE WITH MEASUREMENTS BETWEEN 0.003" AND 4" THICKNESS AND WIDTHS OF 24", 48" AND 60". | Tetraflon® offers a large line of virgin PTFE sheets and plates, these range from 0.003″ to 4″ thick and in widths of 24″, 48″ and 60″, either in sheet or roll. They are considered sheets when their thickness is small, giving the quality of flexibility to the product. On the other hand, it is called a plate when its thickness is greater. Due to the nature of Teflon, it resists high temperatures and is anticorrosive. | General industry such as chemical, oil, electrical, paper, nuclear, metallurgical, automotive, aeronautics, healthcare and food, among others. |
| PTFE PLATES AND SHEETS LOADED WITH FIVI (FIBERGLASS) | RIGID FLAT PIECE MADE OF PTFE WITH FIVI, MEASUREMENTS BETWEEN 0.003" AND 4" THICKNESS AND WIDTHS OF 24", 48" AND 60". | Virgin PTFE or fiberglass filled rods and tubes, ranging from 1” to 24” in diameter, length from 14" to 20" with a wide range of intermediate measurements, the bar is a solid piece of PTFE while The tube has an inside and outside diameter (hollow). This mineral filler allows the piece to have superior compression and sliding properties. Improves the friction resistance of PTFE at high and low temperatures, excellent chemical stability, except strong alkalis and hydrofluoric acid, has better thermal conductivity and friction coefficient when combined with molybdenum disulfide or graphite. | It is the most common fill for seals when there is rotation and alternation in movements (application in pneumatic, hydraulic use, bearings, piston rings, valve seats and mechanical parts). |
| PTFE PLATES AND SHEETS LOADED WITH MoS2 (DISULPHIDE) | RIGID FLAT PIECE MADE OF PTFE WITH DISULPHIDE, MEASUREMENTS BETWEEN 0.003" AND 4" THICKNESS AND WIDTHS OF 24", 48" AND 60". | Tetraflon® offers a large line of virgin PTFE sheets and plates with disulfide fillers, which allow the piece to have compression properties, these range from 0.003″ to 4″ thick and in widths of 24″, 48″ and 60″, either in sheet or roll. They are considered sheets when their thickness is small, giving the product the quality of flexibility. On the other hand, it is called a plate when its thickness is greater. | In dynamic seals where self-lubricity is important, it is generally combined with fiberglass or bronze (bearings, seal rings, piston rings). |
| GRAPHITE PTFE PLATES AND SHEETS | RIGID FLAT PIECE MADE OF PTFE WITH GRAPHITE, MEASUREMENTS BETWEEN 0.003" AND 4" THICKNESS AND WIDTHS OF 24", 48" AND 60". | Tetraflon® offers a large line of virgin PTFE sheets and plates with disulfide fillers, which allow it to be conductive, these range from 0.003″ to 4″ thick and in widths of 24″, 48″ and 60″, either in sheet or roll. They are considered sheets when their thickness is small, giving the product the quality of flexibility. On the other hand, it is called a plate when its thickness is greater. | Widely used in seals where great wear resistance under high pressure is required (piston rings for non-lubricated compressors, bearings) |
| STAINLESS STEEL PTFE PLATES AND SHEETS | RIGID FLAT PIECE MADE OF PTFE WITH STAINLESS STEEL, MEASUREMENTS BETWEEN 0.003" AND 4" THICKNESS AND WIDTHS OF 24", 48" AND 60". | Tetraflon offers a large line of virgin PTFE sheets and plates with stainless steel fillers which allows them to have curing, compression and conductivity properties. They range from 0.003″ to 4″ thick and in widths of 24″, 48″ and 60″, either in sheet or roll. They are considered sheets when their thickness is small, giving the product the quality of flexibility. On the other hand, it is called a plate when its thickness is greater. | It is good in applications when high compression and chemical resistance is required, it is good in dynamic applications (seals and bearings for certain machinery in the food industry). |

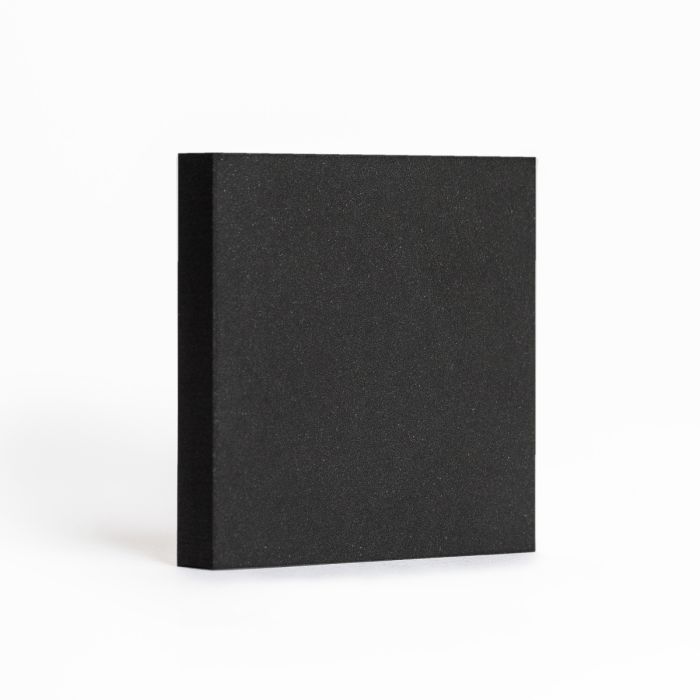

| CARBON PTFE PLATES AND SHEETS | RIGID FLAT PIECE MADE OF PTFE WITH CARBON, MEASUREMENTS BETWEEN 0.003" AND 4" THICKNESS AND WIDTHS OF 24", 48" AND 60". | Tetraflon® offers a large line of virgin PTFE sheets and plates with carbon fillers which allows it to have conductive properties; ranging from 0.003″ to 4″ thick and in widths of 24″, 48″ and 60″, either in sheet or roll. They are considered sheets when their thickness is small, giving the quality of flexibility to the product. On the other hand, it is called a plate when its thickness is greater. | Due to its carbon content it becomes antistatic. It is good in wet use. Widely used in seals where great wear resistance under high pressure is required (piston rings for non-lubricated compressors, bearings) |
| BRONZE PTFE PLATES AND SHEETS | RIGID FLAT PIECE MADE OF PTFE WITH BRONZE, MEASUREMENTS BETWEEN 0.003" AND 4" THICKNESS AND WIDTHS OF 24", 48" AND 60". | Tetraflon® offers a large line of virgin and bronze-filled PTFE sheets and plates, providing conduction properties and resistance to bending. They range from 0.003″ to 4″ thick and in widths of 24″, 48″ and 60″, either in sheet or roll. They are considered sheets when their thickness is small, giving the product the quality of flexibility. On the other hand, it is called a plate when its thickness is greater. | It is attacked by some chemicals so it is not suitable for working with chlorine and some acids. Dynamic seals where high resistance to wear under high compression is required, but when chemical resistance is not important (compression rings, bearings and hydraulic systems) |
| CERAMIC PTFE PLATES AND SHEETS | RIGID FLAT PIECE MADE OF PTFE WITH CERAMIC, MEASUREMENTS BETWEEN 0.003" AND 4" THICKNESS AND WIDTHS OF 24", 48" AND 60". | Tetraflon® offers a large line of virgin and ceramic-filled PTFE sheets and plates, providing properties of hardness, insulation, and low friction coefficient. They range from 0.003″ to 4″ thick and in widths of 24″, 48″ and 60″, either in sheet or roll. They are considered sheets when their thickness is small, giving the product the quality of flexibility. On the other hand, it is called a plate when its thickness is greater. | - |
| PIGMENTED PTFE PLATES AND SHEETS | RIGID FLAT PIECE MADE OF PTFE WITH PIGMENT, MEASUREMENTS BETWEEN 0.003" AND 4" THICKNESS AND WIDTHS OF 24", 48" AND 60". | Tetraflon® offers a large line of virgin PTFE sheets and plates loaded with blue pigment, which allows it to have distinctive/identification qualities in the process. They range from 0.003″ to 4″ thick and in widths of 24″, 48″ and 60″, either in sheet or roll. They are considered sheets when their thickness is small, giving the product the quality of flexibility. On the other hand, it is called a plate when its thickness is greater. | The pigment allows the part to distinguish itself from other components of the process, ideal for compression rings, expansion joints, etc. For the passage of milk, or products that may resemble PTFE in color. |
Plates and Sheets common applications
Food industry
It is used in coatings for utensils and processing equipment, ensuring food safety and maintaining product quality.
Pharmaceutical Industry
It is used in the manufacture of laboratory equipment, also for processing and packaging.
Automotive Industry
It is used in seals, gaskets and transmission systems.
